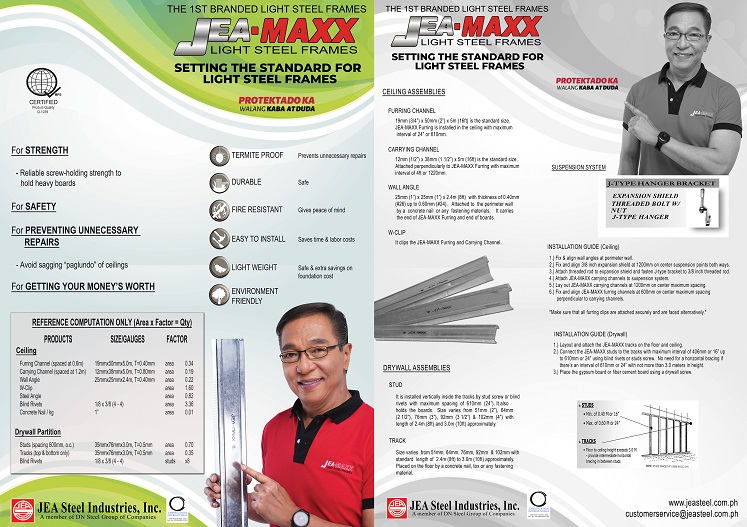

Jea-Maxx
are light steel frames made of galvanized iron used for ceiling and drywall assemblies.
C-Channel
Attached perpendicularly to JEA-MAXX
Furring Channnel with maximum interval of 4ft or 1220mm with standard size of 12mm (1/2″) x 38mm (1 1/2″) x 5m (16ft)
With Thikcness:
- GA 26/0.40mm
- GA 25/0.50mm
- GA 24/0.60mm
Furring
This is installed to the ceiling with maximum interval of 24″ or 610mm with size of 19mm (3/4″) x 50mm (2″) x 5m (16 ft)
With Thikcness:
- GA 26/0.40mm
- GA 25/0.50mm
- GA 24/0.60mm
Studs
Installed vertically inside the tracks by studs screw or blind rivets with maximum spacing of 610mm (24″). It also holds the boards.
Size varies from 51mm (2″), 64mm (2 1/2″), 76mm (3″), 92mm (3 1/2″), 102mm (4″) with lenght of 24mm (8 ft)
with:
- 50mm x 75mm
- 50mm x 100mm
- 50mm x 150mm
- GA 25/0.50mm
- GA 24/0.60mm
- GA 22/0.80mm
- GA 20/1.00mm
Tracks
Placed on the floor by a concrete nail, tox or any fastening material with size of 35mm (1 3/8) x 76mm (3″) and standard length of 2.44m (8ft) to 3.0m (10ft)
- 35mm x 51mm, 64mm, 92mm, 102mm
- 50mm x 75mm, 100mm, 150mm
- GA 25/0.50mm
- GA 24/0.60mm
- GA 22/0.80mm
- GA 20/1.00mm
Wall Angle
Attached to the perimeter wall by a concrete nail or any fastening materials. It carries the end of JEA-MAXX Furring Channel and end of boards with size of 25mm (1″) x 25mm (1″) x 2.40mm (8ft)
(For Special Fabrication, 5 to 7 days)
With Thickness:
- GA 26/0.40mm
- GA 25/0.50mm
- GA 24/0.60mm
- GA 22/0.80mm
